Re: The Lull Before The Storm ...

Post by Jivermo » Tue Apr 02, 2019 3:02 pm

Oh, man...I see the Spirit there,in that bunch! Damn good rendition of that complex hero. Will Eisner was a terrific artist, and the Spirit stories were just completely incomprehensible to me. But...I loved his drawings. I know! I want a Spirit drawing, with him driving a Westy bay camper, speeding down Mulholland Drive, shooting with a heavy automatic pistol at criminals fleeing in a 1940 Ford coupe. Huh, huh? Wouldja,wouldja?

User avatar
jtauxe
Addicted!
Location: Lost Almost, NM
Contact:
Status: Offline

Re: The Lull Before The Storm ...

Post by jtauxe » Thu Apr 04, 2019 10:24 am

Perhaps some inspiration from the late great Peter Aschwanden...

http://www.peteraschwanden.com/galleryThumbs1.html

BTW, his widow is selling art 'n' stuff. I got a signed original print of the exploded bug.
John
"The bus came by and I got on. That's when it all began..." - Garcia/Weir/Kreutzman
http://vw.tauxe.net

User avatar
Kit Whistler
I'm New!
Status: Offline

Re: The Lull Before The Storm ...

Post by Kit Whistler » Tue Apr 09, 2019 7:33 am


Those are some bad-ass kitties. Excellent work—and glad your hand didn’t fall off in the process. Now, new projects! ;)

User avatar
Amskeptic
IAC "Help Desk"
IAC "Help Desk"
Status: Offline

Re: The Lull Before The Storm ...

Post by Amskeptic » Sun Apr 14, 2019 7:09 am

Lulling about, I am.
I was sitting there and thought, "when am I going to get to that shift rod?"

/viewtopic.php?f=47&t=13694#p230727



Well, to get to the shift rod, you have to take out the engine and transaxle. So I did:

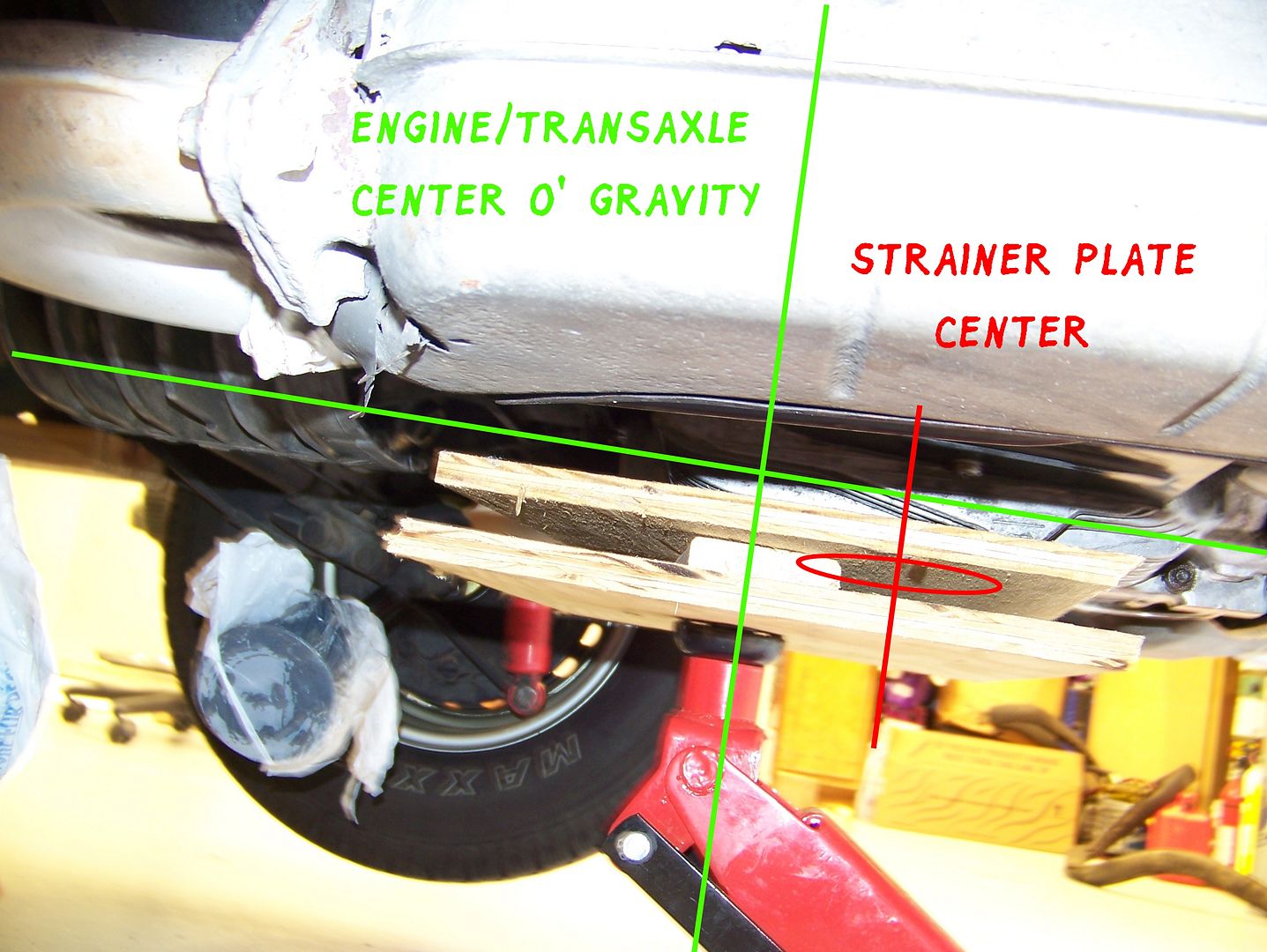

To take out the engine and transaxle with a little 'ol floor jack, you need to hit the center of gravity of the whole assembly:

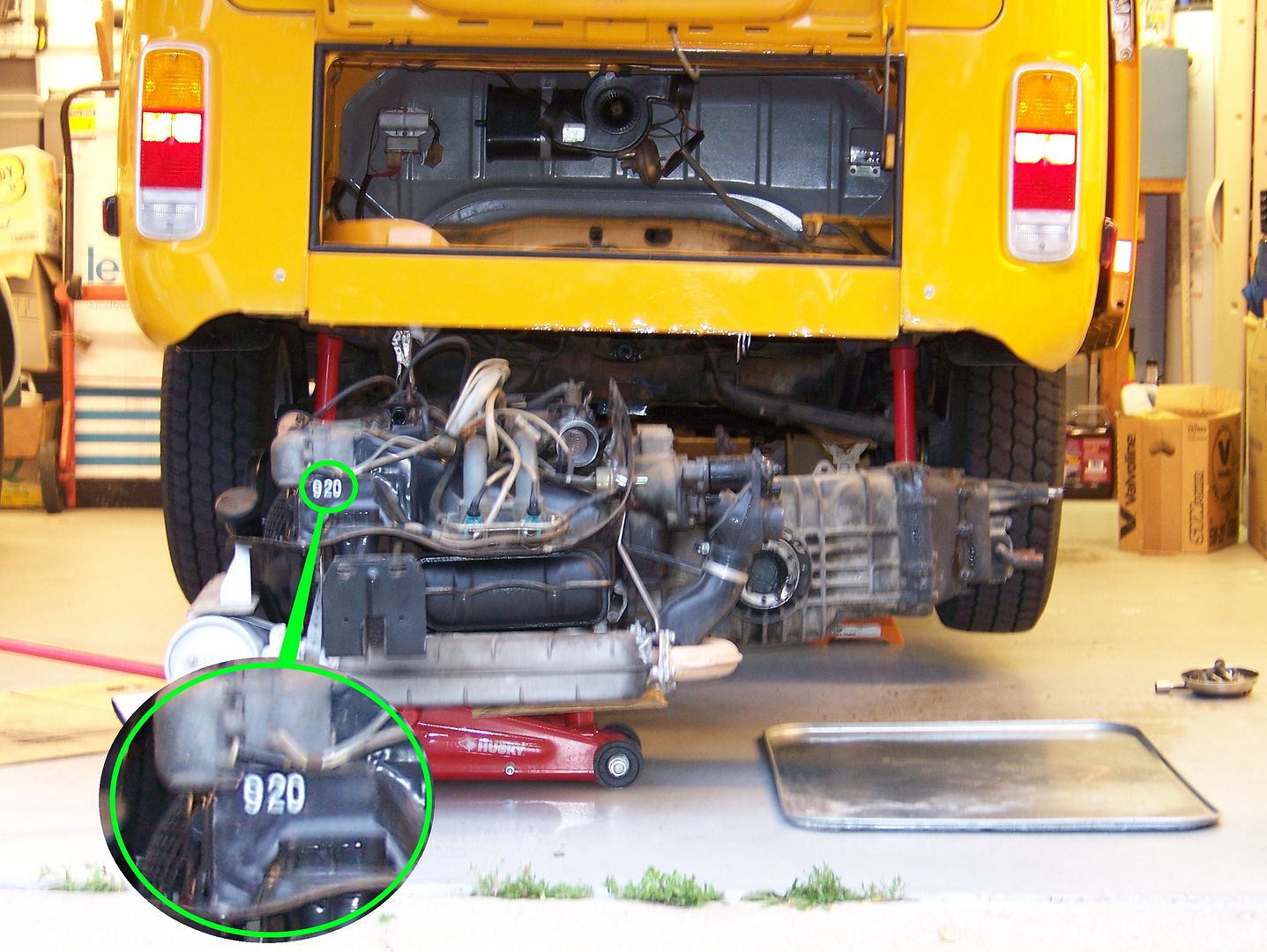

The engine can remain fully-dressed when you remove the transaxle and the engine together. The only additional steps are to unbolt the inner CVs and remove clutch cable bracket, reverse wires and wires from the starter:




Factory fresh at 97,000 miles, folks, there's the emission code:



I wanted to restore everything to super-gorgeous, but I do NOT have time ... but I did get the red hose from the decel valve to the plastic tube re-redded. Me and the kid, happy:

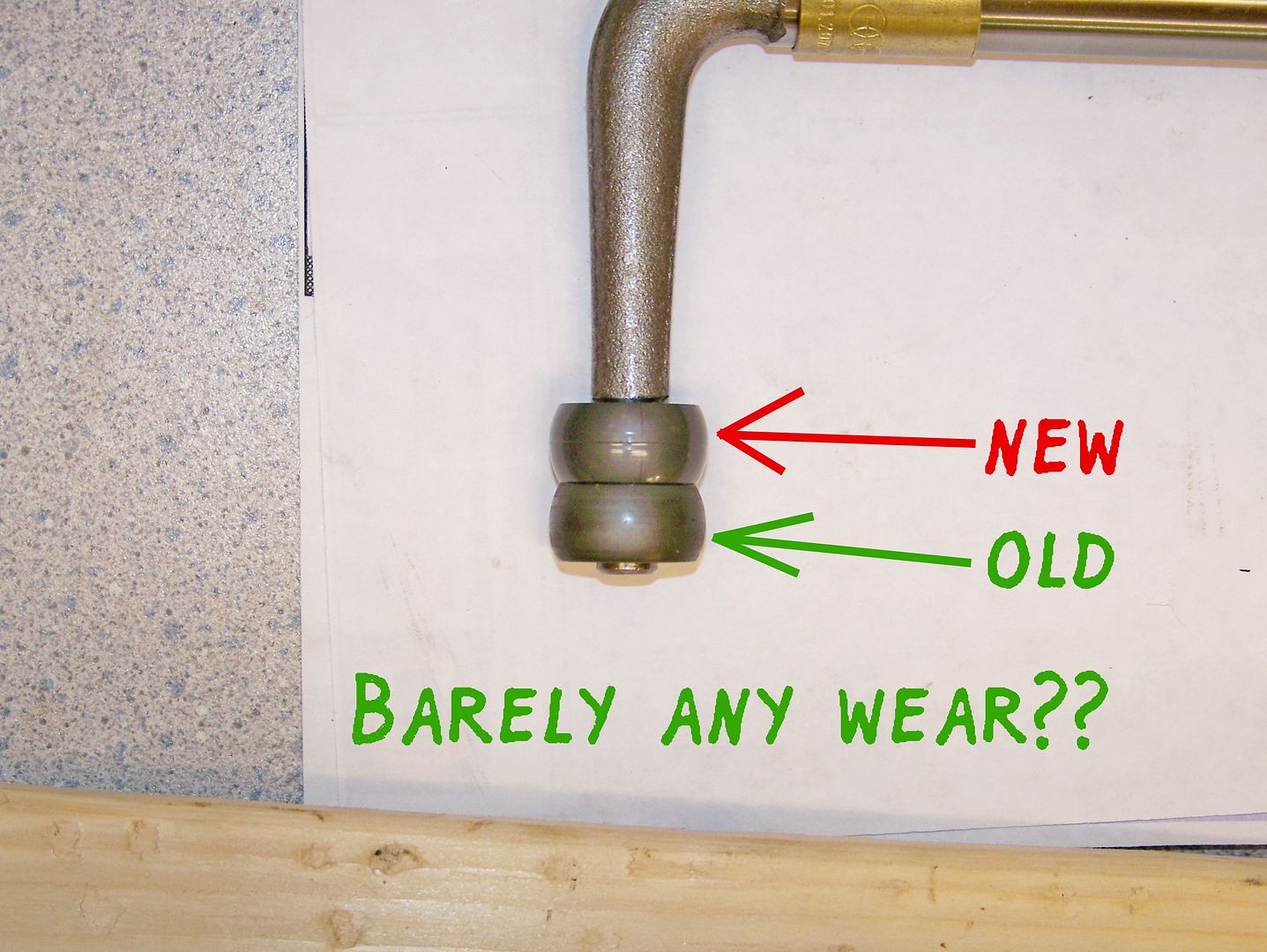

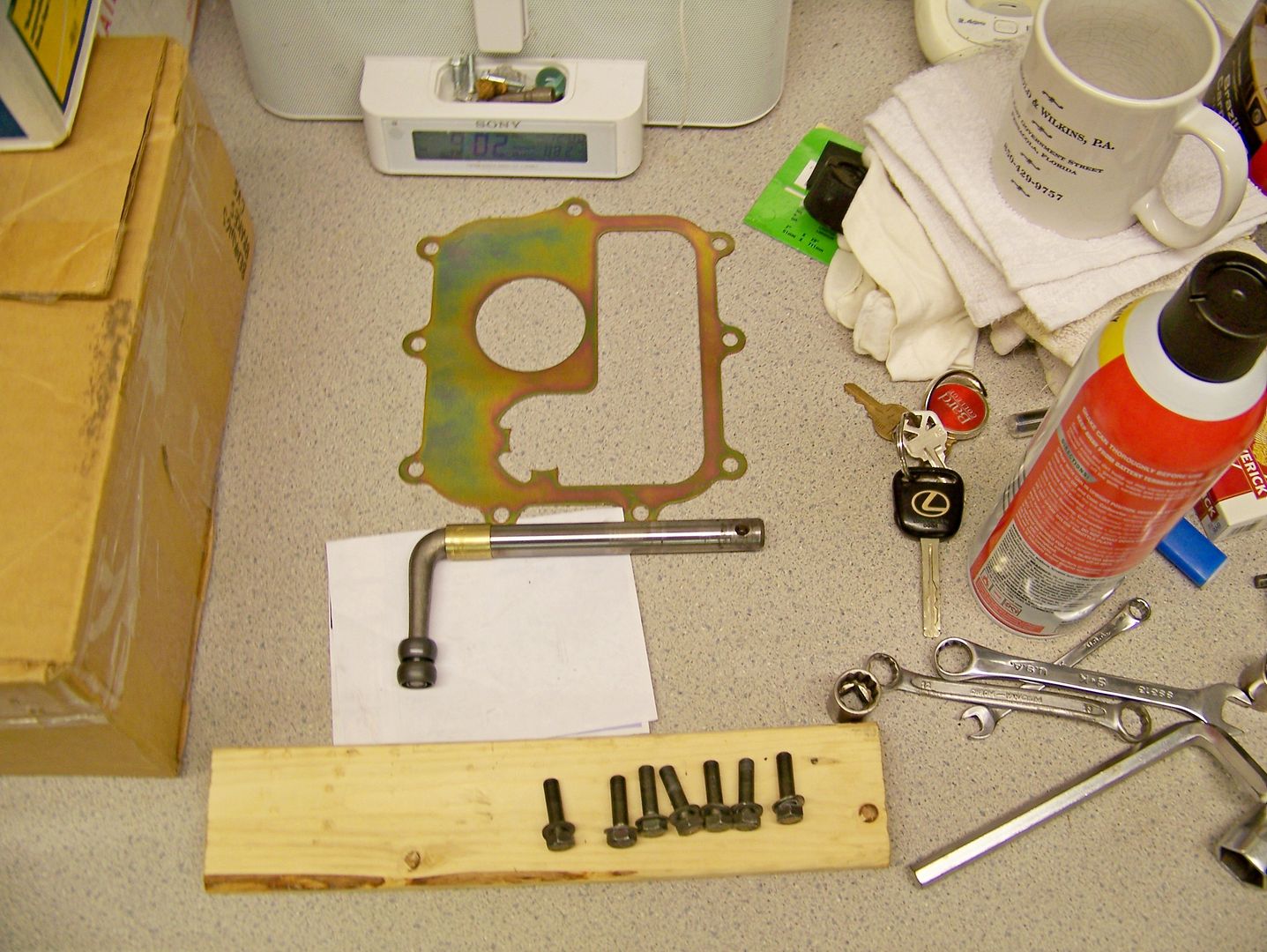

Because the path to the shift rod removal includes having the transaxle out of the car, I thought, "let's install a bearing retainer plate and a new hockey stick ball!" See how you clean BEFORE disassembly?











Am I just wasting TIME around here?

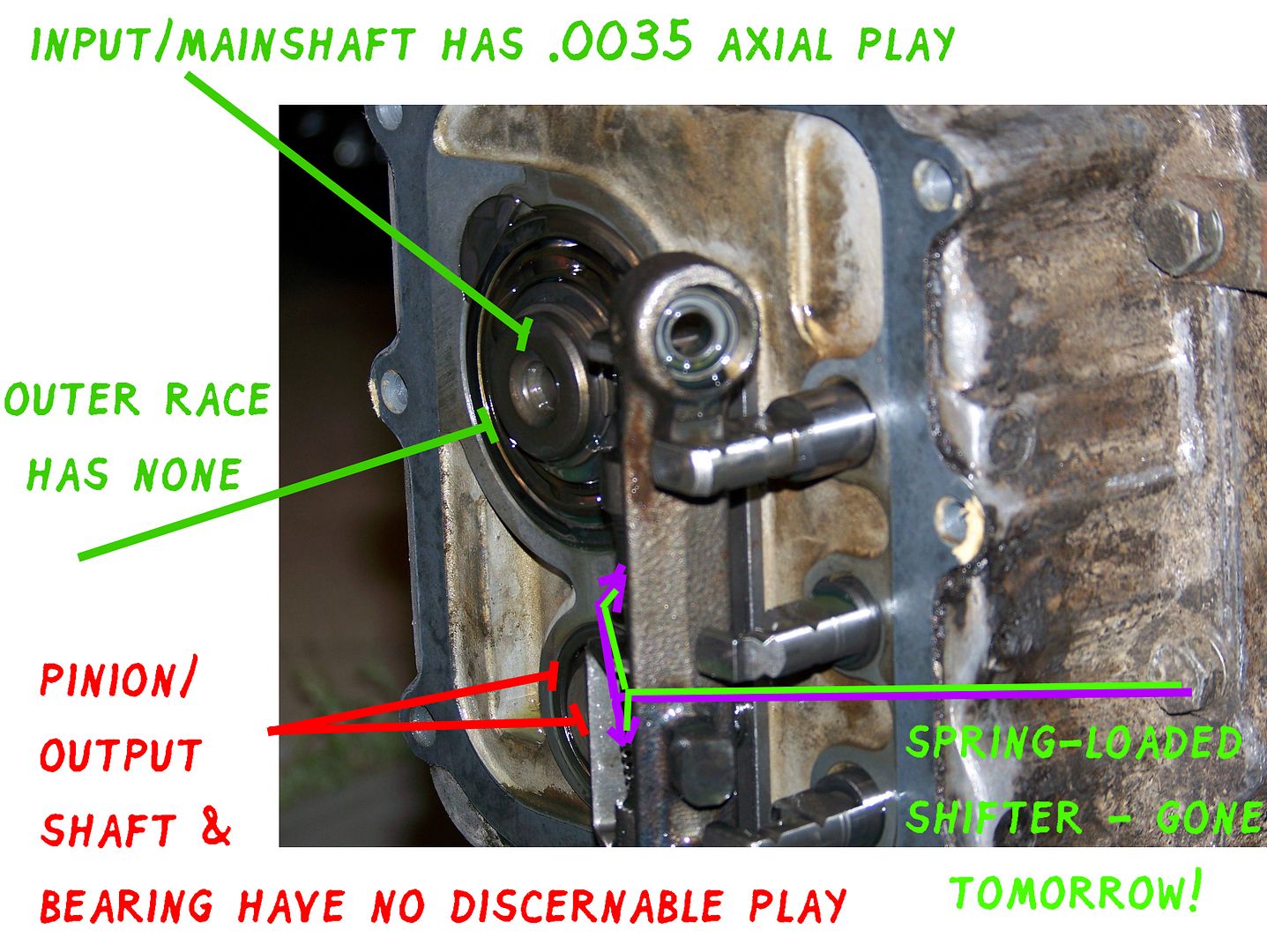

Well, maybe, but I am putting in this bearing retainer plate to help prevent the axial play in the gearbox from bashing the bearings out. That's right folks, your quiet helical (diagonally cut) gears cause a lot of forward/backward forces every time you accelerate/decelerate. This steel plate stops the movement a whole lot better than the magnesium of the nose cone:



I did do a mirror/80 grit milling operation the next morning to remove the very little evidence of wear. Note the grease soaked paper towel in the hockey stick bore:

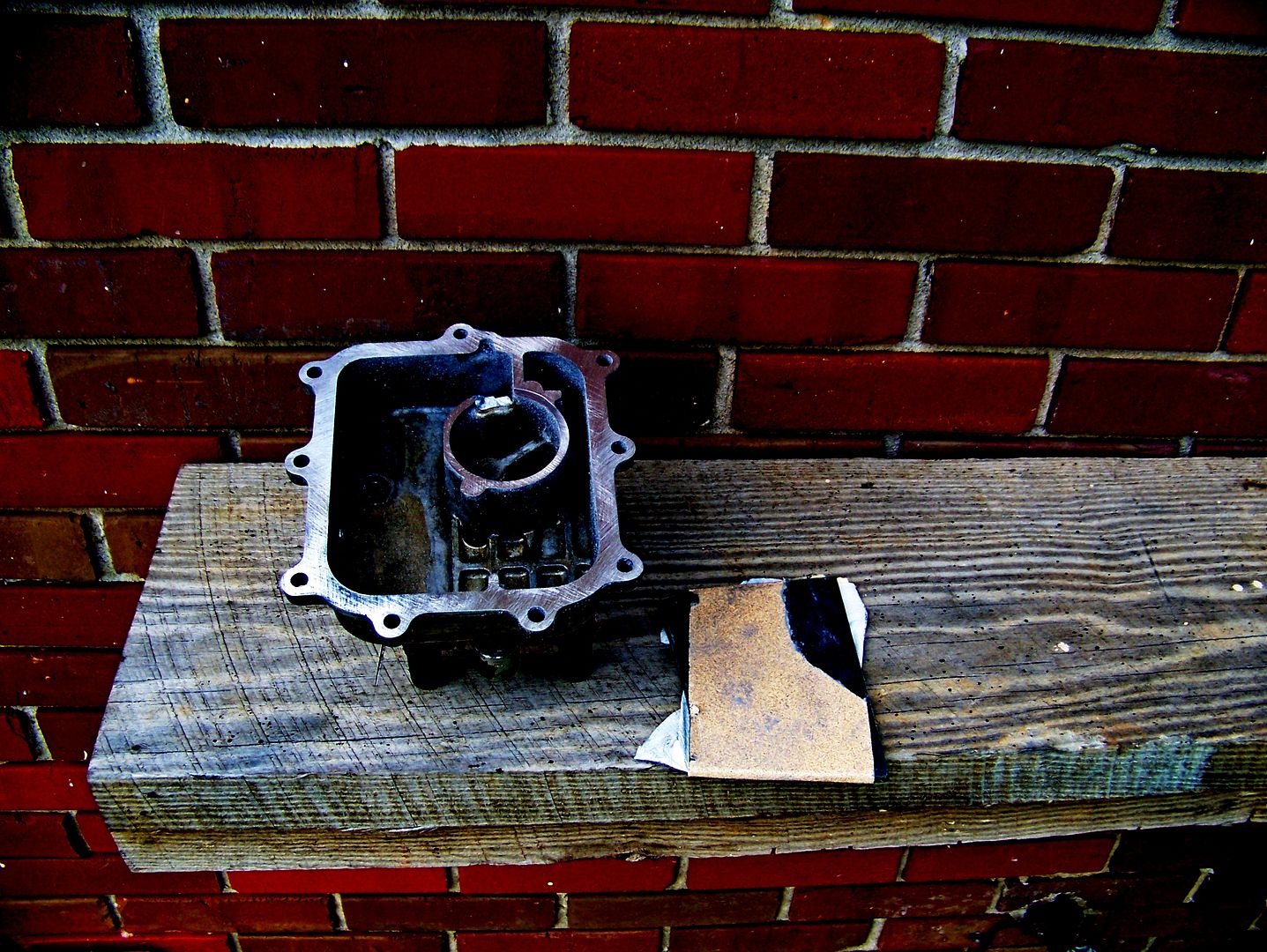

I used the ambient light reflecting off the gasket surface to keep my "milling" accurate:



Then I washed the heck out of the nose cone with plenty of Dawn and hot water and re-lubricated the very nice original hockey stick bushings/little embedded ball bearings. Removed the hated springs that gave us that 1976-on-up spring-loaded shift gate, and stuck in a new hockey stick ball (plastic, not metal, no springs to wear the thing out!) and. Yay!

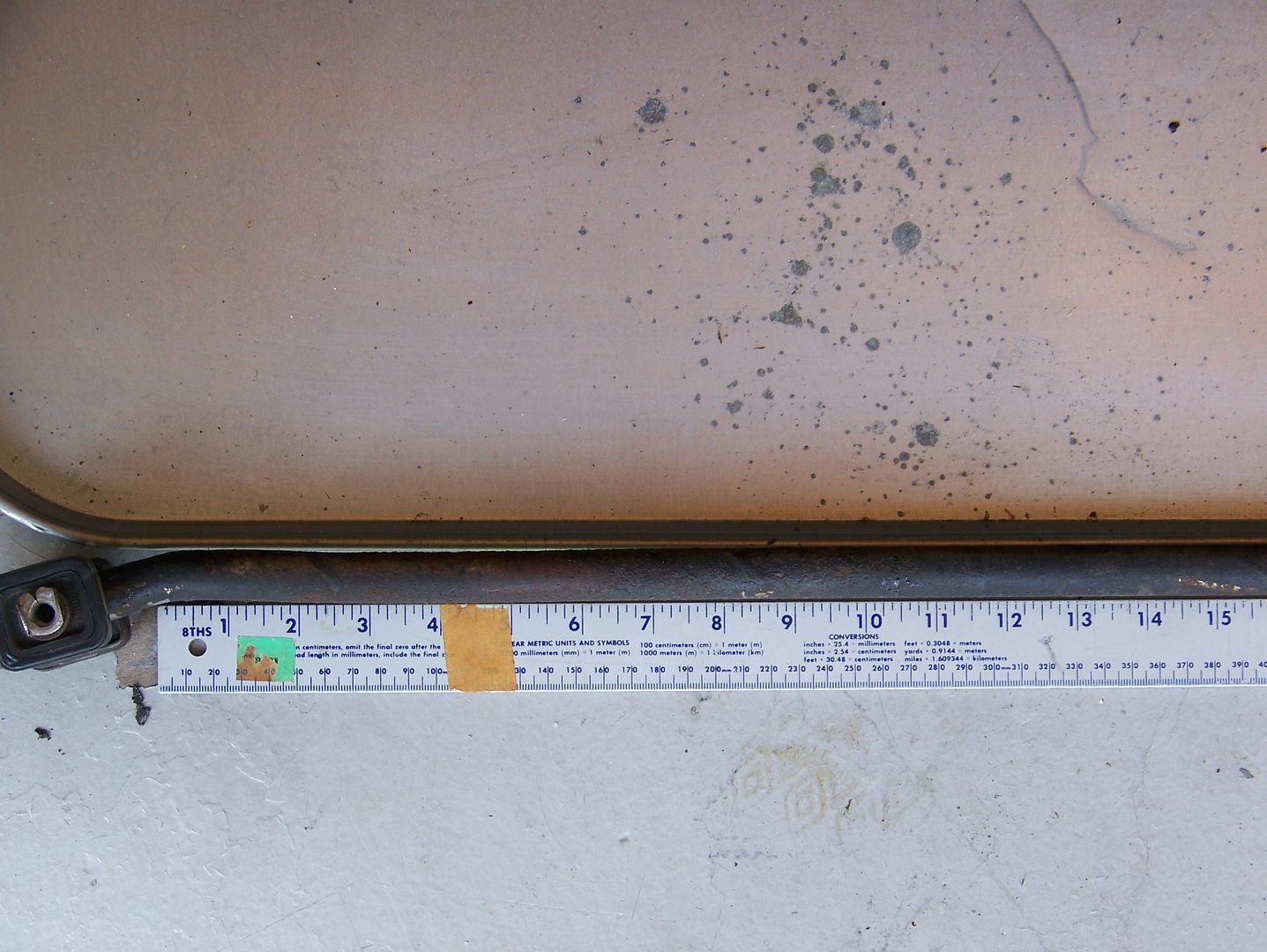

Oh yeah, remember the bent shift rod diagram up there at the top? I finally got to it. Pretty diagrams are one thing but photos or it didn't happen. It happened. Here is the residual shift rod bend after my field repair straightening made the car so much more civilized ...



The final "perfect" straightening was not much fun. Too much crap falling off the counters, but you can see the "fulcrum" I slipped in at the middle of the bend. Then I crushed it flat in the vise, but it sprang back when I loosened, so I had to bend the whole shift rod at the first curve against the near edge of the vise a "little too much" so it would then spring back perfectly straight:



Sanded the rust off the shift rod AND the inside of the rear bumper, then brush-painted the inside of the bumper and rust-catalyzing primer followed by silver for the shift rod:

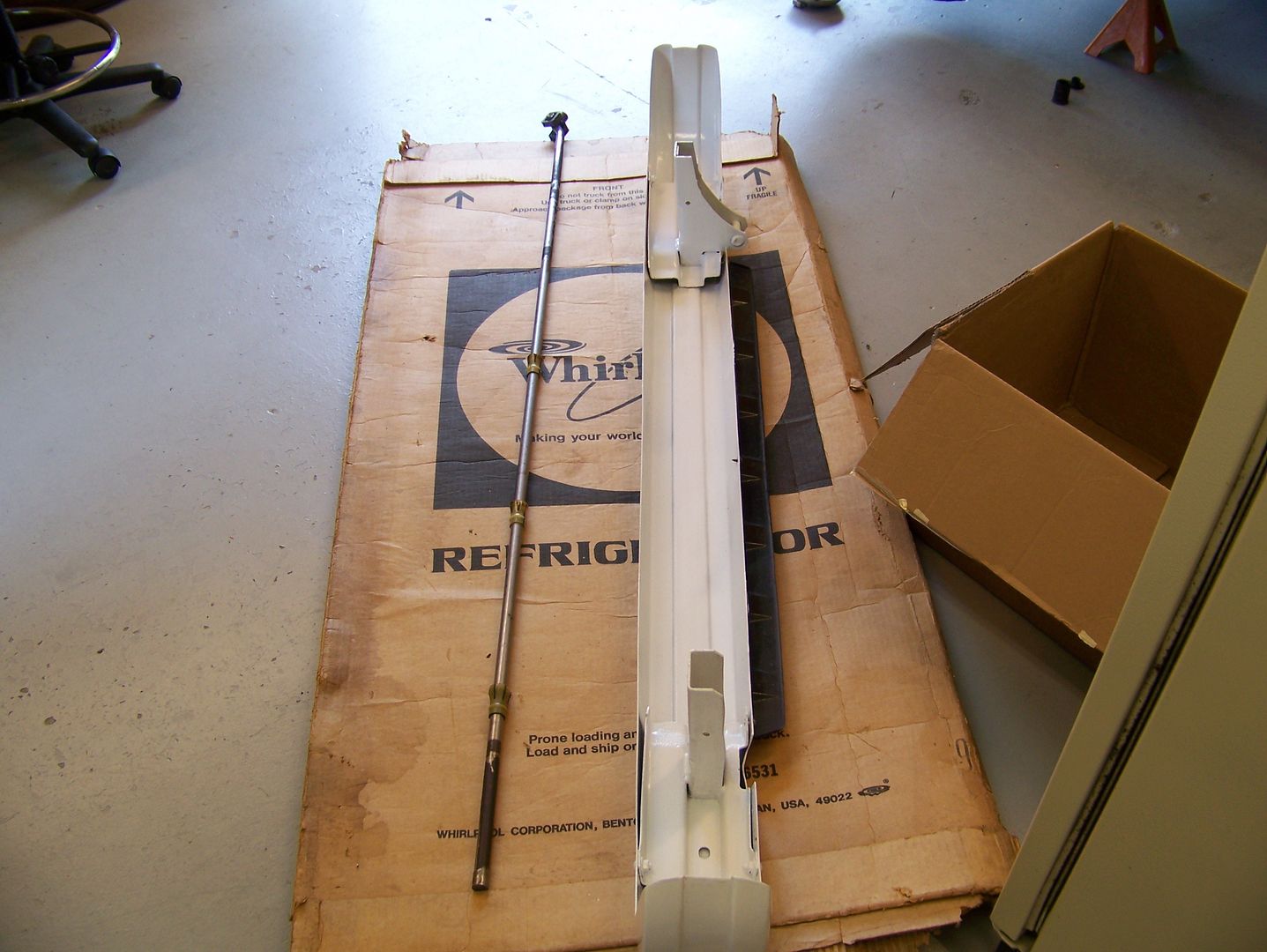

Now-silver shift rod going back into the car with grease and new boots:



So much I wanted to do, but no TIME. The only thing I did for the engine was to remove every tin screw one-at-a-time and hit their threads with anti-seize, so I can do future tin-painting projects out in the boonies without wasting half the day due to a stuck screw .... go! engine in! Bye.
BobD - 1978 Bus . . . . . . . . . . . 111,155 miles
Chloe - 1970 bus . . . . . . . . . . . 206,820 miles
Naranja - 1977 Westfalia . . . . . 108,000 miles
Pluck - 1973 Squareback . . . . . . 55,570 miles
Alexus - 1991 Lexus LS400 . . . 78,885 miles

Jivermo
IAC Addict!
Status: Offline

Re: The Lull Before The Storm ...

Post by Jivermo » Sun Apr 14, 2019 8:16 am

Wonderful description! Thank you, the late and good Long Enterprises, for those plates!

User avatar
BusBassist
Getting Hooked!
Location: Rochester, NY
Status: Offline

Re: The Lull Before The Storm ...

Post by BusBassist » Sun Apr 14, 2019 6:32 pm

I'm curious Colin - how long did it take you to do this work? Half day? A day? Two?

Jeff
Late 73 Bay w/a transplanted 914 Engine.

User avatar
asiab3
IAC Addict!
Location: San Diego, CA
Contact:
Status: Offline

Re: The Lull Before The Storm ...

Post by asiab3 » Sun Apr 14, 2019 7:25 pm

BusBassist wrote:
Sun Apr 14, 2019 6:32 pm
I'm curious Colin - how long did it take you to do this work? Half day? A day? Two?

Jeff
Yeah! Where's The Itinerary Clock???

Robbie
1969 bus, "Buddy."
119k miles with me.
296k miles on Earth.

User avatar
Amskeptic
IAC "Help Desk"
IAC "Help Desk"
Status: Offline

Re: The Lull Before The Storm ...

Post by Amskeptic » Wed Apr 17, 2019 12:03 pm

asiab3 wrote:
Sun Apr 14, 2019 7:25 pm
BusBassist wrote:
Sun Apr 14, 2019 6:32 pm
I'm curious Colin - how long did it take you to do this work? Half day? A day? Two?

Jeff
Yeah! Where's The Itinerary Clock???

Robbie
It is not yet the Itinerary, and thus, there is no No Itinerary Yet Clock.
The entire process, including cleaning up after that horrific Testors model red paint (no WONDER children were beaten senseless in the early 60's!), took three easy-going days with:

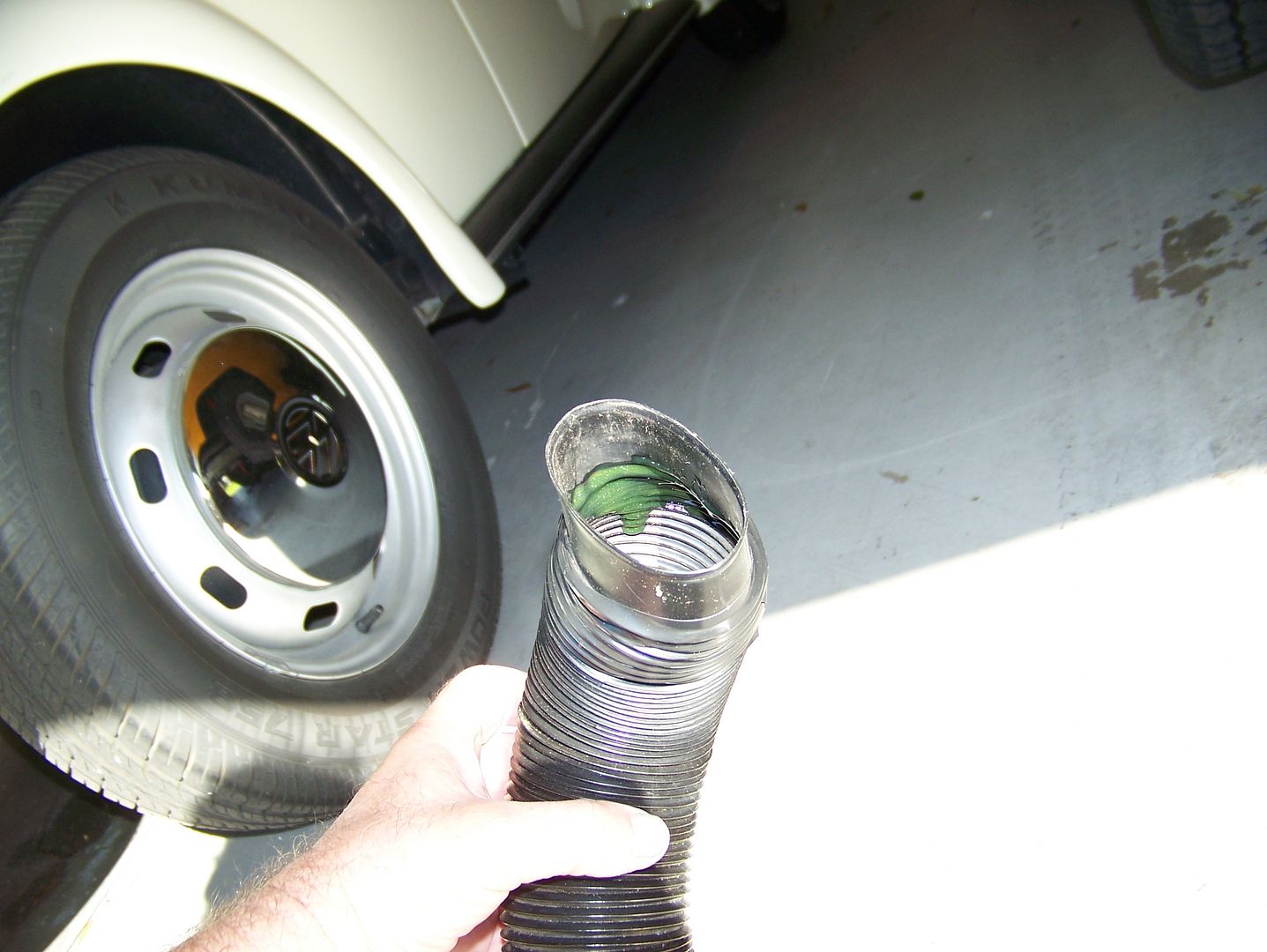

a trick epoxy repair of the last plastic fresh air duct in the country:

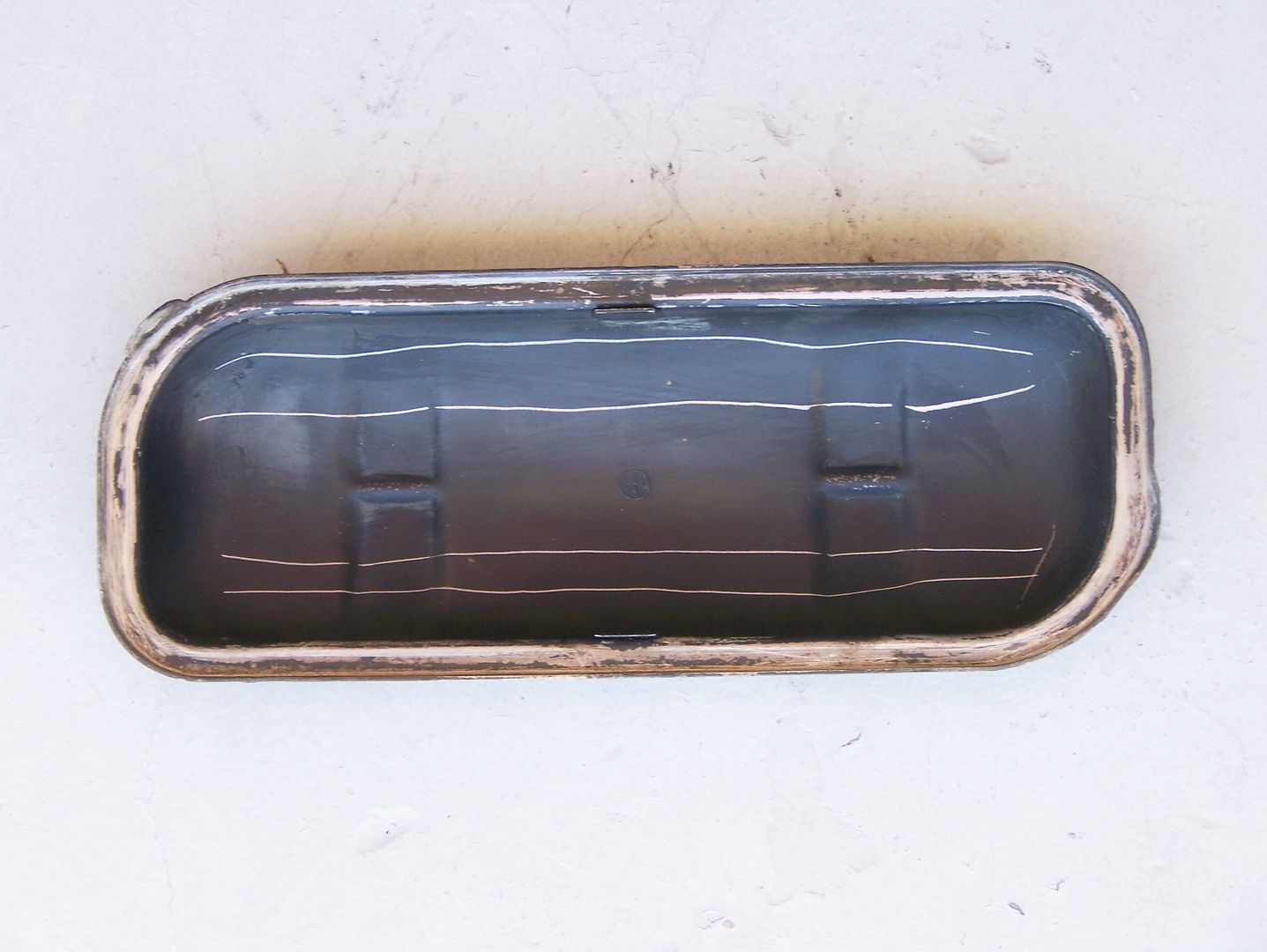

a re-torque of the lower cylinder head nuts (If I had had TIME, I would have loved to replace the heads) and rocker supports (photo here shows scratches I put inside the valve cover to monitor oil temps):


an entire exhaust system repaint,


a sink wash of the foam seal (a great thing to do, by the way),

re-refashioned dump tubes (now using VW 1600 heater hose) and innumerable other little projects like touching up the black paint on the tins and detailing the engine compartment and all wires:


Now I am in a scramble with upper ball joints at .065" and I refuse to buy crap new chinese Lemforder or Turkish Meyle ball joints! I refuse! Now I am waiting for responses from Samba classified vendors. I am only doing the uppers, regardless, to keep the friction down. The lowers have imperceptible play. What makes the uppers wear out more than the lowers?
Colin

BobD - 1978 Bus . . . . . . . . . . . 111,155 miles
Chloe - 1970 bus . . . . . . . . . . . 206,820 miles
Naranja - 1977 Westfalia . . . . . 108,000 miles
Pluck - 1973 Squareback . . . . . . 55,570 miles
Alexus - 1991 Lexus LS400 . . . 78,885 miles

mtcamper
I'm New!
Location: Montana
Status: Offline

Re: The Lull Before The Storm ...

Post by mtcamper » Sat Apr 20, 2019 6:58 pm

I love them all, and selfishly love a late westy. I have driven them all too. It looks like it will be Naranja again which will be great. I voted for Bob D because it really is one of the nicest, best driving cars I have ever driven. Nothing like any bus I have ever driven.

markannenorton
I'm New!
Location: snowcamp,NC
Status: Offline

Re: The Lull Before The Storm ...

Post by markannenorton » Sun Apr 21, 2019 5:24 am

Colin, markannenorton here still have that 1977 bus that won't rev over 3500rpm. may be a stop in NC. I see you may be coming through.

User avatar
Amskeptic
IAC "Help Desk"
IAC "Help Desk"
Status: Offline

Re: The Lull Before The Storm ...

Post by Amskeptic » Mon Apr 22, 2019 11:03 am

mtcamper wrote:
Sat Apr 20, 2019 6:58 pm
I love them all, and selfishly love a late westy. I have driven them all too. It looks like it will be Naranja again which will be great. I voted for Bob D because it really is one of the nicest, best driving cars I have ever driven. Nothing like any bus I have ever driven.
BobD wants to go, I know. Might be a horrendous impulsive last-minute move. but the summer gathering in Taos seems to want to be a real camper experience instead of my usual. I might break it up and take the BobD at least to East Coast Calls post Main-Lap.
What a problem to have ... :geek:
BobD - 1978 Bus . . . . . . . . . . . 111,155 miles
Chloe - 1970 bus . . . . . . . . . . . 206,820 miles
Naranja - 1977 Westfalia . . . . . 108,000 miles
Pluck - 1973 Squareback . . . . . . 55,570 miles
Alexus - 1991 Lexus LS400 . . . 78,885 miles

User avatar
Amskeptic
IAC "Help Desk"
IAC "Help Desk"
Status: Offline

Re: The Lull Before The Storm ...

Post by Amskeptic » Mon Apr 22, 2019 11:03 am

markannenorton wrote:
Sun Apr 21, 2019 5:24 am
Colin, markannenorton here still have that 1977 bus that won't rev over 3500rpm. may be a stop in NC. I see you may be coming through.
You are now relegated to fall should you decide ...
Colin
BobD - 1978 Bus . . . . . . . . . . . 111,155 miles
Chloe - 1970 bus . . . . . . . . . . . 206,820 miles
Naranja - 1977 Westfalia . . . . . 108,000 miles
Pluck - 1973 Squareback . . . . . . 55,570 miles
Alexus - 1991 Lexus LS400 . . . 78,885 miles

User avatar
weisswurst
Addicted!
Location: NW Florida
Status: Offline

Re: The Lull Before The Storm ...

Post by weisswurst » Wed Apr 24, 2019 4:18 pm

Amskeptic wrote: What a problem to have ... :geek:
Ha! As I love to say when possible,
“Sounds like a first world problem”
:geek:
"I drink, therefore yes ma'am..."

User avatar
Amskeptic
IAC "Help Desk"
IAC "Help Desk"
Status: Offline

Re: The Lull Before The Storm ...

Post by Amskeptic » Mon May 13, 2019 5:49 am

Amskeptic wrote:
Mon Apr 22, 2019 11:03 am
... the summer gathering in Taos seems to want to be a real camper experience instead of my usual.
That summer gathering? My last art project of the season ... ask Kit and JR how feverish that collaboration was ... :blackeye:
viewtopic.php?f=51&t=13822#p232769

BobD - 1978 Bus . . . . . . . . . . . 111,155 miles
Chloe - 1970 bus . . . . . . . . . . . 206,820 miles
Naranja - 1977 Westfalia . . . . . 108,000 miles
Pluck - 1973 Squareback . . . . . . 55,570 miles
Alexus - 1991 Lexus LS400 . . . 78,885 miles

User avatar
Kit Whistler
I'm New!
Status: Offline

Re: The Lull Before The Storm ...

Post by Kit Whistler » Mon May 20, 2019 1:23 pm

Amskeptic wrote:
Fri Mar 22, 2019 8:09 am
Stuck at the drawing board still, trying to build a sensible path across the country, staring at this growing collection of stickers ...
Image [image]
I received two beautiful orange westy stickers in the mail and am currently trying to decide where to tattoo one of them onto Sunshine, our ‘76 Westy. She currently has no other stickers, so this is a big deal....
JR and I thought we’d recreate your photo above, Colin. Hope it does your art justice.
😉🚌
-kit
