Post by TrollFromDownBelow » Sun Sep 09, 2018 6:16 pm

Step 1: Come to the realization that I would really like a quiet exhaust system, and an engine that I would feel comfortable driving further than 200 miles from home. (Heads are toast, not even rebuildable)

Step 2: Wife convinces me to go ahead and spend the $$$ on a set of Len heads because the bus isn't leaving the family for a very, very long time (she threatened me w/ divorce if I sold it).

Step 4: Pull engine from bus, post pics on line. Receive feedback that it looks like it has oil blow by, so should at the minimum replace rings and hone cylinders.

Step 3: Ehhh, If I'm going through all this effort, should probably replace P's and C's...order a set of Mahle's.

Step 4: Colin comes over and takes a look at it. The bump stick is toast. You gotta crack the case.

Step 5: Get a bit of the deer in the headlights feeling with all the work that is ahead.

Step 6: Several weeks later order Tom Wilson's book

Annnd, this is where it's at. This isn't going to be one of those really cool posts with lots of pics, and detailed instructions (I'm not that patient). It will most likely turn into a place for me to rant and vent a bit and ask for advise. But, hopefully someone will eventually find some nuggets in it.

Stay tuned...Wilson book comes in a week or so, and I've still got to finish tearing down the engine. and oh yeah, have a LOT of cleaning to do!
1976 VW Bus aka tripod
FI ...8 completely solid lifters.... now it's both kinda noisy and leaky, but she sure runs good!
hambone wrote: There are those out there with no other aim but to bunch panties. It's like arguing with a pretzel.
::troll2::

User avatar
Bleyseng
IAC Addict!
Location: Seattle again
Contact:
Status: Offline

Re: my engine rebuild thread

Post by Bleyseng » Mon Sep 10, 2018 7:37 am

I'm ahead of you as I am reassembling my 914 motor today. Well, atleast buttoning up the case as the gasket set came and I have a new rear main custom fit to solve that problem. Cleaning is done!
Geoff
77 Sage Green Westy- CS 2.0L-160,000 miles
70 Ghia vert, black, stock 1600SP,- 139,000 miles,
76 914 2.1L-Nepal Orange- 160,000+ miles
http://bleysengaway.blogspot.com/

User avatar
Amskeptic
IAC "Help Desk"
IAC "Help Desk"
Status: Offline

Re: my engine rebuild thread

Post by Amskeptic » Mon Sep 10, 2018 4:10 pm

TrollFromDownBelow wrote:
Sun Sep 09, 2018 6:16 pm
oh yeah, have a LOT of cleaning to do!

Oh yes, you do . . .
ColinDawnSalesman
BobD - 1978 Bus . . . . . . . . . . . 112,660 miles
Chloe - 1970 bus . . . . . . . . . . . 206,845 miles
Naranja - 1977 Westfalia . . . . . 112,885 miles
Pluck - 1973 Squareback . . . . . . 55,570 miles
Alexus - 1991 Lexus LS400 . . . 78,899 miles

User avatar
tommu
Addicted!
Location: Sunny Burbank
Status: Offline

Re: my engine rebuild thread

Post by tommu » Mon Sep 10, 2018 9:16 pm

I found a case half would fit nicely in one of these in the bath tub:


These bottle brushes helped too. And they're not brass.. https://www.harborfreight.com/9-piece-t ... 90631.html

User avatar
Amskeptic
IAC "Help Desk"
IAC "Help Desk"
Status: Offline

Re: my engine rebuild thread

Post by Amskeptic » Tue Sep 11, 2018 7:56 pm

tommu wrote:
Mon Sep 10, 2018 9:16 pm
I found a case half would fit nicely in one of these in the bath tub:

Nice! I used a milk crate to hold the Dining Room Engine in the Road Warrior.

BobD - 1978 Bus . . . . . . . . . . . 112,660 miles
Chloe - 1970 bus . . . . . . . . . . . 206,845 miles
Naranja - 1977 Westfalia . . . . . 112,885 miles
Pluck - 1973 Squareback . . . . . . 55,570 miles
Alexus - 1991 Lexus LS400 . . . 78,899 miles

User avatar
asiab3
IAC Addict!
Location: San Diego, CA
Contact:
Status: Offline

Re: my engine rebuild thread

Post by asiab3 » Tue Sep 11, 2018 10:46 pm

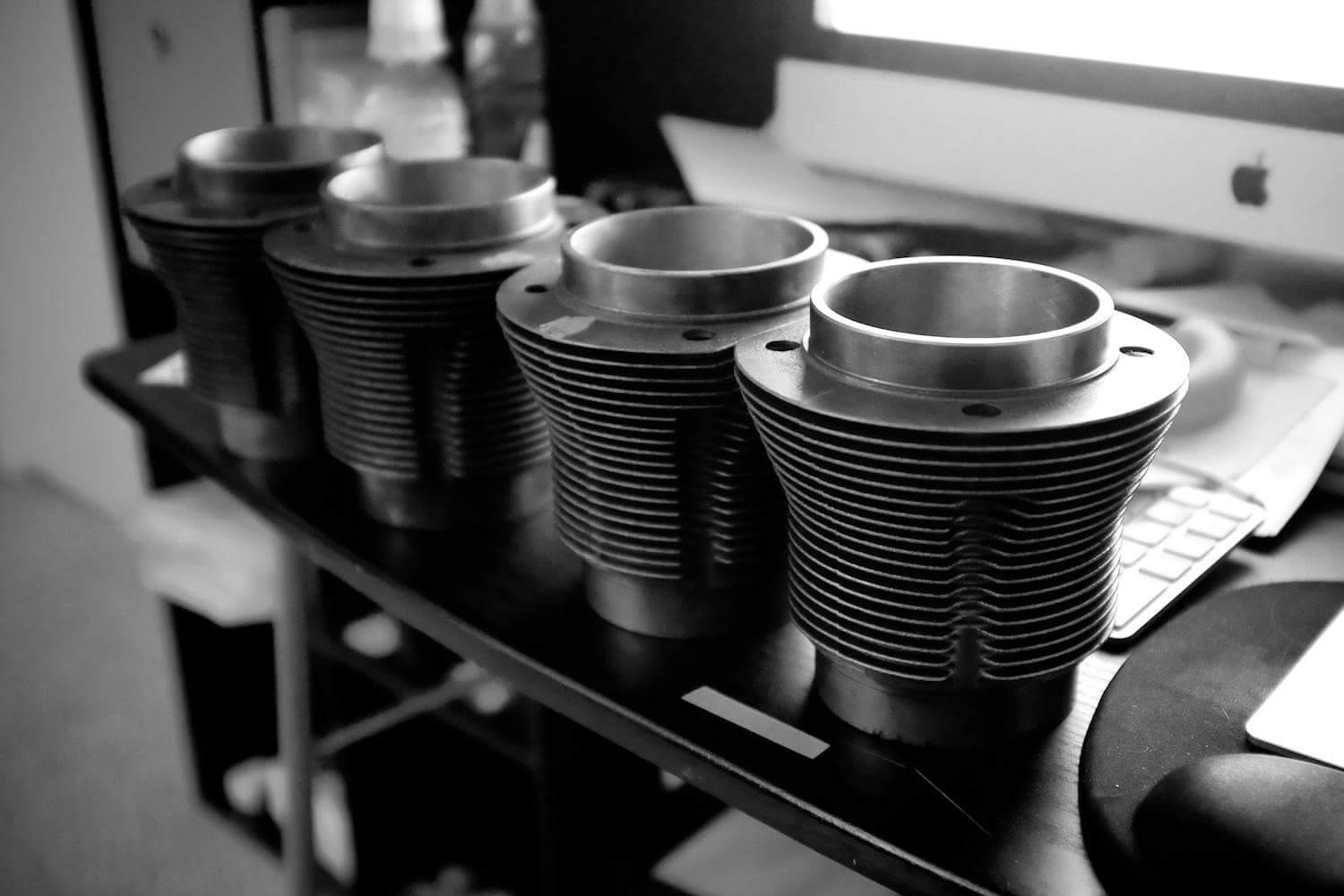

Never pass up a good photo opportunity during the process...
