Re: Wiper Assembly Refresh

Post by chachi » Thu Oct 06, 2016 8:19 pm

yeah, i've got the post vice gripped up into the shaft so i can get as much of the groove exposed as possible. i'm assuming you want the C clips to face different directions, kind of like piston rings, but get one on and the second one wants to bend more than it wants to slip on.
1974 transporter panel, 2.0 dual solex
1991 vanagon NAHT, RJE 2.3

User avatar
Amskeptic
IAC "Help Desk"
IAC "Help Desk"
Status: Offline

Re: Wiper Assembly Refresh

Post by Amskeptic » Sat Oct 08, 2016 7:36 am

chachi wrote:yeah, i've got the post vice gripped up into the shaft so i can get as much of the groove exposed as possible. i'm assuming you want the C clips to face different directions, kind of like piston rings, but get one on and the second one wants to bend more than it wants to slip on.
Do you have the companion shaft assembled so you can check dimensions? Is there an errant little washer mucking up the works? I have seen too many wiper shafts that move up and down sloppily, so yours is an outlier.
Colin
BobD - 78 Bus . . . 112,660 miles
Chloe - 70 bus . . . 206,845 miles
Naranja - 77 Westy . . . 129,490 miles
Pluck - 1973 Squareback . . . . . . 55,570 miles
Alexus - 91 Lexus LS400 . . . 94,225 miles

User avatar
chachi
Old School!
Location: ne pdx, or.
Contact:
Status: Offline

Re: Wiper Assembly Refresh

Post by chachi » Mon Oct 17, 2016 5:39 pm

looks right, you're thinking the errant clip might just be in the shaft somewhere? i lubed the crap out of the groove and the clip and finally got it "on"...sort of. pinched and squeezed and pried and it was on there. but rotating the shaft just worked that clip right off. i reassembled without the second clip and there was no slop so i just went with it. managed to drop a bushing into the hollow between the out and insides under the windshield channel but after buying another it looks AIC-ok. didn't know what else to do to get it on there.
1974 transporter panel, 2.0 dual solex
1991 vanagon NAHT, RJE 2.3

User avatar
chachi
Old School!
Location: ne pdx, or.
Contact:
Status: Offline

Re: Wiper Assembly Refresh

Post by chachi » Sun Oct 23, 2016 5:46 am

surprised to see new wiper arms come un-splined...?
1974 transporter panel, 2.0 dual solex
1991 vanagon NAHT, RJE 2.3

User avatar
asiab3
IAC Addict!
Location: San Diego, CA
Contact:
Status: Offline

Re: Wiper Assembly Refresh

Post by asiab3 » Sun Oct 23, 2016 9:34 am

Iiiiiiinteresting. I wonder if they're such soft metal the splines will etch themselves in at first tightening? Or I wonder if the manufacturers have such soft spines that they've given up.

Though I'm temped to agree with GoWesty's eight foot/pound rule for tightening. I would NOT want to strip the threads.

Robbie
1969 bus, "Buddy."
145k miles with me.
322k miles on Earth.

User avatar
Amskeptic
IAC "Help Desk"
IAC "Help Desk"
Status: Offline

Re: Wiper Assembly Refresh

Post by Amskeptic » Sun Oct 23, 2016 4:16 pm

chachi wrote:surprised to see new wiper arms come un-splined...?
That is how they come! It is soft potmetal! You get to adjust the arms to exacting perfection! You tighten the nuts down to factory-specified torque and you re-check after the first use! Then they will be Kustom-Splined.
Colin
BobD - 78 Bus . . . 112,660 miles
Chloe - 70 bus . . . 206,845 miles
Naranja - 77 Westy . . . 129,490 miles
Pluck - 1973 Squareback . . . . . . 55,570 miles
Alexus - 91 Lexus LS400 . . . 94,225 miles

User avatar
chachi
Old School!
Location: ne pdx, or.
Contact:
Status: Offline

Re: Wiper Assembly Refresh

Post by chachi » Mon Oct 24, 2016 10:19 am

yeah i removed one after tightening it down and it did appear to spline it. interesting. kind of surprised my old ones lasted as long as they did, neglected as they were.

thanks for this tune up thread and your help!
1974 transporter panel, 2.0 dual solex
1991 vanagon NAHT, RJE 2.3

User avatar
furgo
I'm New!
Status: Offline

Re: Wiper Assembly Refresh

Post by furgo » Fri Sep 08, 2017 5:52 am

Six years after, this is still a very useful post, thanks!

As soon as I fix some more pressing engine issues, I'm planning to go through this procedure, as my windshield wipers currently move in slow motion. To complement the post, I thought I'd add a picture of the Phillips screw that holds the glovebox as mentioned on Step 1.

For easy finding, it sits to the left of the silver socket.
Picture taken looking from behind of the glovebox compartment. Left: silver socket, next to it, the glovebox strap screw

User avatar
Amskeptic
IAC "Help Desk"
IAC "Help Desk"
Status: Offline

Re: Wiper Assembly Refresh

Post by Amskeptic » Fri Sep 08, 2017 5:51 pm

furgo wrote:
Fri Sep 08, 2017 5:52 am
Six years after, this is still a very useful post, thanks!

As soon as I fix some more pressing engine issues, I'm planning to go through this procedure, as my windshield wipers currently move in slow motion. To complement the post, I thought I'd add a picture of the Phillips screw that holds the glovebox as mentioned on Step 1.

For easy finding, it sits to the left of the silver socket.

Picture taken looking from behind of the glovebox compartment. Left: silver socket, next to it, the glovebox strap screw

Watch out for that silver socket . . . it is live.
All three of my VW buses have lively wipers, but they need exercise to keep the magnets happy. Also, it is more apparent to me after all of these years and buses, that the shafts need lubrication through the threaded sleeves. Automatic transmission oil and a little engine oil seems to work well as a penetrant and a decent lubricant.
Colin
BobD - 78 Bus . . . 112,660 miles
Chloe - 70 bus . . . 206,845 miles
Naranja - 77 Westy . . . 129,490 miles
Pluck - 1973 Squareback . . . . . . 55,570 miles
Alexus - 91 Lexus LS400 . . . 94,225 miles

User avatar
sgkent
Addicted!
Location: Citrus Heights CA (near Sacramento)
Status: Offline

Re: Wiper Assembly Refresh

Post by sgkent » Mon Sep 11, 2017 9:23 am

as my windshield wipers currently move in slow motion.
often a sign that the plastic gear inside the motor is cracked. https://www.thesamba.com/vw/classifieds ... id=1720906
Thank You -

Merlin The Wrench

User avatar
Amskeptic
IAC "Help Desk"
IAC "Help Desk"
Status: Offline

Re: Wiper Assembly Refresh

Post by Amskeptic » Mon Sep 11, 2017 10:40 pm

sgkent wrote:
Mon Sep 11, 2017 9:23 am
as my windshield wipers currently move in slow motion.
often a sign that the plastic gear inside the motor is cracked.
How is that, Steve? I can't visualize a crack causing slow operation.
Colin
BobD - 78 Bus . . . 112,660 miles
Chloe - 70 bus . . . 206,845 miles
Naranja - 77 Westy . . . 129,490 miles
Pluck - 1973 Squareback . . . . . . 55,570 miles
Alexus - 91 Lexus LS400 . . . 94,225 miles

User avatar
furgo
I'm New!
Status: Offline

Re: Wiper Assembly Refresh

Post by furgo » Tue Sep 12, 2017 4:15 am

Amskeptic wrote:
Mon Sep 11, 2017 10:40 pm
sgkent wrote:
Mon Sep 11, 2017 9:23 am
as my windshield wipers currently move in slow motion.
often a sign that the plastic gear inside the motor is cracked.
How is that, Steve? I can't visualize a crack causing slow operation.
Colin
Thanks for the heads up on the plastic gear. I too asked myself the same question as Colin, as well as how can this be checked without taking the motor apart.

In any case, here are some more pictures I took a few days ago to complement step 2:

Heater ducts block removal of wiper motor assembly (view from the radio opening)
Late bus ventilation register viewed from the top:
Removing a late bus left ventilation register (view from the bottom). Be careful not to damage the mono speaker if you've still got it in there.

User avatar
sgkent
Addicted!
Location: Citrus Heights CA (near Sacramento)
Status: Offline

Re: Wiper Assembly Refresh

Post by sgkent » Tue Sep 12, 2017 8:10 am

How is that, Steve? I can't visualize a crack causing slow operation.
Colin
I too asked myself the same question as Colin, as well as how can this be checked without taking the motor apart.

because when the gear inside the motor cracks the center shaft slips in the plastic so the gear turns slower and slower. The wipers will slow and then eventually stop when the plastic spines are eaten away. The most common way to test is raise the wipers and turn them on (if the radio antenna is out of the way. They will go at a normal speed because there is no load. Put them on a windshield with some water or windex and they will go slow or stop as the spindle slips in the plastic gear.

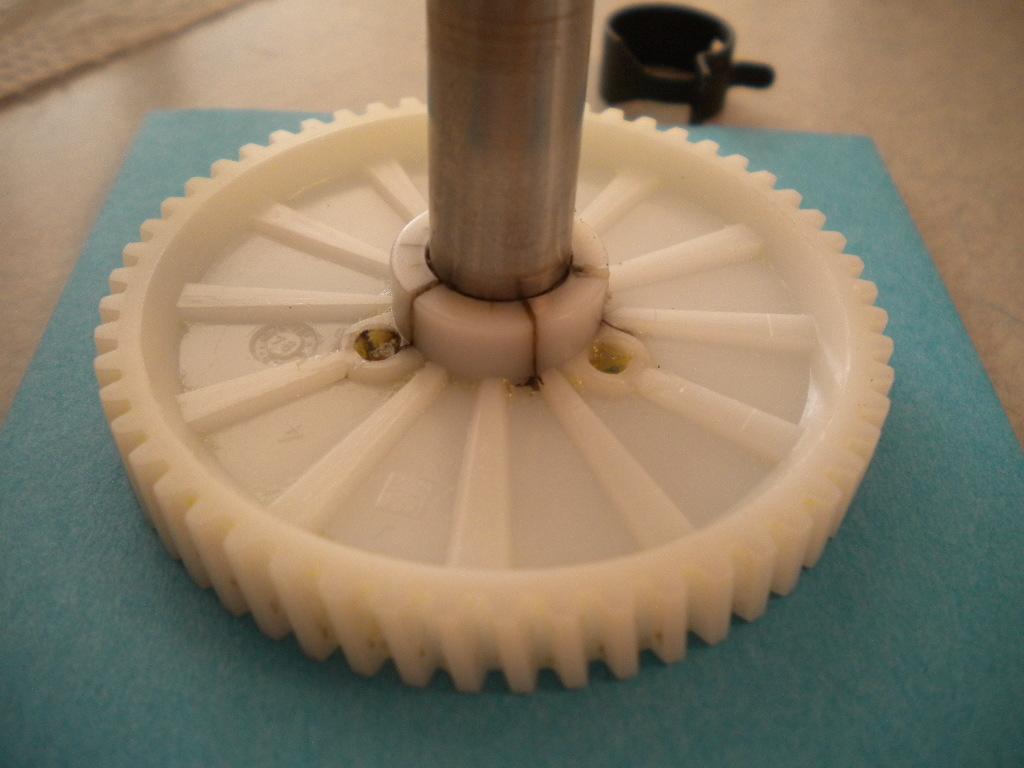

see the cracks at the spindle. Photos from TS

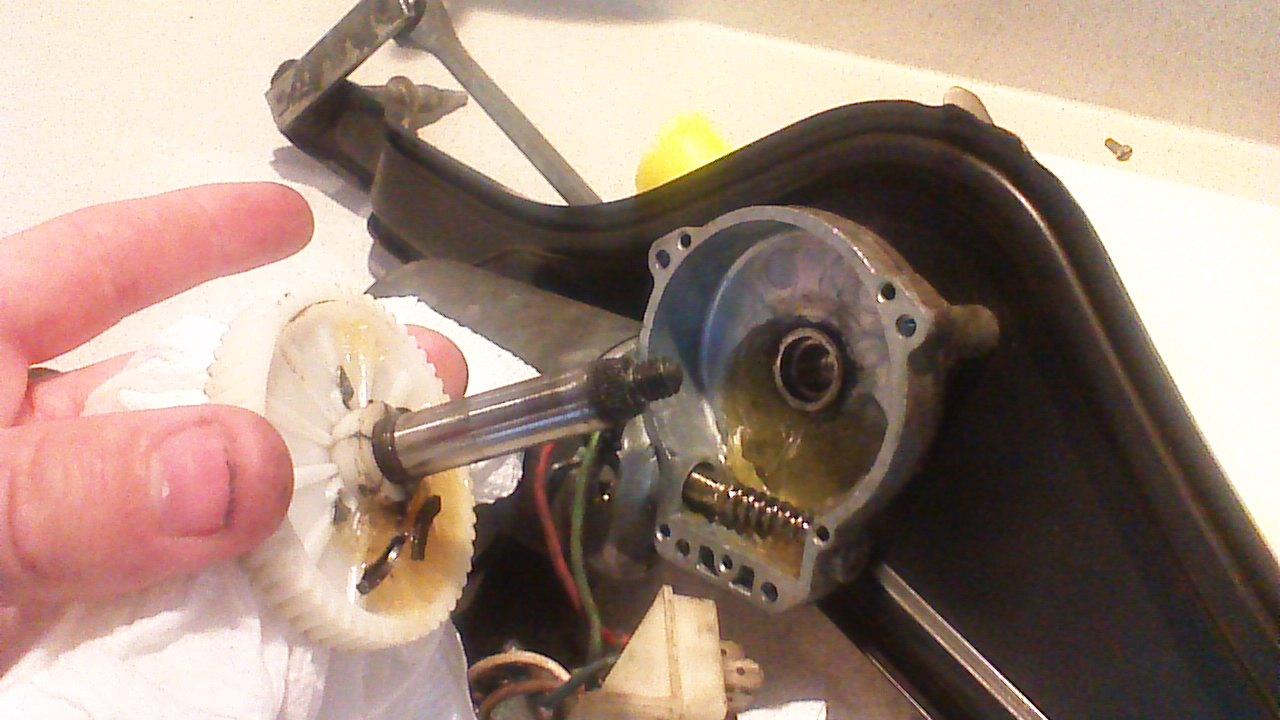

The fix since new gears are not available and epoxies don't hold
